Revisited: Multiple Instance installations and patches

I initially blogged about multiple instance installations couple of years ago. The way I described it worked fine for me, but the time flies and the things has changed ever since – WiX grew up to even more solid toolset, and I also gained some knowledge. So, this post is to revisit the topic and look at it through the prism of WiX 3.6.
Imagine you have an application, and you’d like to be able to install several instances of it side-by-side on a single machine. The starting point is still to author the InstanceTransforms element:

<InstanceTransforms Property="INSTANCEID">
   <Instance Id="I01" ProductCode="{GUIDGOES-HERE-4731-8DAA-9E843A03D482}" ProductName="My Product 01"/>
   <Instance Id="I02" ProductCode="{GUIDGOES-HERE-4f1a-9E88-874745E9224C}" ProductName="My Product 02"/>
   <Instance Id="I03" ProductCode="{GUIDGOES-HERE-5494-843B-BC07BBC022DB}" ProductName="My Product 03"/>
    ...
</InstanceTransforms>

Obviously, the number of Instance elements is the number of instances supported by this installation program (plus the default one). In order to install the default instance, you should run the following command (assuming the generated MSI package is called MultiInstance.msi):

msiexec /i MultiInstance.msi

In order to start the installation of another instance, change the command as follows:

msiexec /i MultiInstance.msi MSINEWINSTANCE=1 TRANSFORMS=":I01"

The MSINEWINSTANCE property set to 1 instructs msiexec to start the installation of another instance instead of default one. Note that in the above example we installing the instance I01. The Instance element results into an instance transform being embedded into the MSI package, and by setting TRANSFORMS property to “:I01” we instruct msiexec to apply the embedded instance transform which corresponds to the I01 instance. The TRANSFORMS property can contain other transforms (for instance, language transforms), but that’s another topic.

Uninstalling looks quite similar, for instance, default instance uninstallation:

msiexec /x MultiInstance.msi

In order to uninstall the extra instance, you should explicitly specify its ProductCode. So, for instance I01 the uninstall command line looks like this:

msiexec /x {GUIDGOES-HERE-4731-8DAA-9E843A03D482}

So far, so good – it is quite straight-forward. Now, let’s turn to the Windows Installer documentation about multiple instances one more time. Apart from the requirement for each instance to have a unique product code and instance identifier (this is what WiX does for free with InstanceTransforms technique), it strongly recommends to keep the data isolated. For the file data, this means installing the files of each instance to a different location – the path containing instance ID as its part fits best. For the non-file data, it’s a bit more complex: the appropriate components should have different GUIDs, and again install to a different location.

In my first attempt to approach the problem, I’ve applied a workaround: generate new GUIDs for each component of new instance, embed those “component transforms” into the resulting MSI and apply along with the instance transform. Well, sounds not very efficient, but assuming a great number of components harvested automatically, this was simple enough. Fortunately, wise developers of WiX team thought this through and came up with a far more elegant solution in version 3.6.

Starting from WiX 3.6.1502.0, a Component element has an attribute MultiInstance of YesNo type. According to the WiX docs, “If this attribute is set to 'yes', a new Component/@Guid will be generated for each instance transform.” Fantastic! That’s what we need! Let’s see how it affects the multiple instance installations on a sample. Let’s say our installation program consists of the following components, and we’d like to be able to install this software at least 3 times:

<Directory Id="ProductNameFolder" Name="TestName">
   <Component Id="FileComponent" Guid="{GUIDGOES-HERE-4301-95D2-86A4C80EF5F0}">
      <File Id="dll" Source="$(var.Source)\Some.Test.dll" KeyPath="yes" />
   </Component>
   <Component Id="ConfigComponent" Guid="{GUIDGOES-HERE-4c2f-BE74-CF78D2350E48}">
      <File Id="web_config" Source="$(var.Source)\web.config" KeyPath="yes" />
   </Component>
   <Directory Id="EmptyFolderDir" Name="EmptyFolder">
      <Component Id="FolderComponent" Guid="{GUIDGOES-HERE-4543-A9F8-17491670D3A6}">
         <CreateFolder />
      </Component>
   </Directory>
   <Component Id="RegistryComponent" Guid="{GUIDGOES-HERE-45e5-ABFD-07E5CC4D7BC9}">
      <RegistryKey Id="MainRegKey" Action="createAndRemoveOnUninstall" Root="HKLM" Key="SOFTWARE\MultiInstanceTest\[ProductCode]">
         <RegistryValue Id="MainRegValue" Name="InstanceId" Value="[INSTANCEID]" Type="string" />
         <RegistryValue Id="InstallPathValue" Name="Location" Value="[ProductNameFolder]" Type="string" />
         <RegistryValue Id="ProductCodeValue" Name="ProductCode" Value="[ProductCode]" Type="string" />
         <RegistryValue Id="ProductNameValue" Name="ProductName" Value="[ProductName]" Type="string" />
         <RegistryValue Id="ProductVersionValue" Name="ProductVersion" Value="[ProductVersion]" Type="string" />
      </RegistryKey>
   </Component>
</Directory>

<InstanceTransforms Property="INSTANCEID">
   <Instance Id="I01" ProductCode="{GUIDGOES-HERE-4731-8DAA-9E843A03D482}" ProductName="My Product 01"/>
   <Instance Id="I02" ProductCode="{GUIDGOES-HERE-4f1a-9E88-874745E9224C}" ProductName="My Product 02"/>
</InstanceTransforms>

The MSDN recommendations about multiple instances are followed, except for “keeping non-file data isolated”. Let’s see how it affects the install/uninstall. Run the installation of the default and I01 instance as described above. Both instances are installed to the different locations correctly:




Now uninstall the default instance – you’ll see that non-file data was not removed properly:



This is happening because the components which hold this data are considered shared by the Windows Installer, and during uninstallation of one instance it detects that there’s another one pointing to the same components and leaves those untouched. Now if you uninstall the other instance, it successfully removes both EmptyFolder and registry key, but as a result we’ll still have orphaned resources of the first instance.

That’s the initial problem, and let’s see how elegant new WiX feature deals with it. You should only add the MultiInstance=’yes’ attribute to the components holding non-file data, and forget about the problem of orphaned resources forever. Like this:

<Directory Id="ProductNameFolder" Name="TestName">
   <Component Id="FileComponent" Guid="{GUIDGOES-HERE-4301-95D2-86A4C80EF5F0}">
      <File Id="dll" Source="$(var.Source)\Some.Test.dll" KeyPath="yes" />
   </Component>
   <Component Id="ConfigComponent" Guid="{GUIDGOES-HERE-4c2f-BE74-CF78D2350E48}">
      <File Id="web_config" Source="$(var.Source)\web.config" KeyPath="yes" />
   </Component>
   <Directory Id="EmptyFolderDir" Name="EmptyFolder">
      <Component Id="FolderComponent" Guid="{GUIDGOES-HERE-4543-A9F8-17491670D3A6}" MultiInstance="yes">
         <CreateFolder />
      </Component>
   </Directory>
   <Component Id="RegistryComponent" Guid="{GUIDGOES-HERE-45e5-ABFD-07E5CC4D7BC9}" MultiInstance="yes">
      <RegistryKey Id="MainRegKey" Action="createAndRemoveOnUninstall" Root="HKLM" Key="SOFTWARE\MultiInstanceTest\[ProductCode]">
         <RegistryValue Id="MainRegValue" Name="InstanceId" Value="[INSTANCEID]" Type="string" />
         <RegistryValue Id="InstallPathValue" Name="Location" Value="[ProductNameFolder]" Type="string" />
         <RegistryValue Id="ProductCodeValue" Name="ProductCode" Value="[ProductCode]" Type="string" />
         <RegistryValue Id="ProductNameValue" Name="ProductName" Value="[ProductName]" Type="string" />
         <RegistryValue Id="ProductVersionValue" Name="ProductVersion" Value="[ProductVersion]" Type="string" />
      </RegistryKey>
   </Component>
</Directory>

Now check the above scenario once again: install 2 instances and uninstall them. You’ll see that both install correctly and uninstall clearly. Isn’t it GREAT?!

Now, let’s turn to patching. Again, if we look back to my initial post on this topic, I was using an ugly method to make the patch applicable for all instances of the installed product. That method assumed opening the binary patch for read/write and rude injection into its structure. Though it worked, there’s much more elegant way of doing this. I’d like to thank Heath Stewart for the hint – here’s the full thread on wix-users mailing list.

So, the default behavior is the following: if you author the PatchBaseline element with its default validation settings, the patch will be applicable to the default instance only. That’s because it tracks the ProductCode is the product baseline it was built against, and checks it during install time. The trick is to add a Validate child to the PatchBaseline, and instruct it not to check the ProductCode:

<Media Id="5000" Cabinet="RTM.cab">
   <PatchBaseline Id="RTM">
      <Validate ProductId="no" />
   </PatchBaseline>
</Media>

So, after you build this patch, you’ll be able to apply it to a particular instance:

msiexec /i {GUIDGOES-HERE-4412-9BC2-17DAFFB00D20} PATCH=patch.msp /l*v patch.log

Or to all the installed instances at once (so-called “double-click scenario”):

msiexec.exe /p patch.msp /l*vx patch.log

There’s still one more obvious inconvenience in the patch authoring, as for me. You have to specify the ProductCode entries twice: in the main installation sources (InstanceTransform/@ProductCode) and in the patch sources (TargetProductCode/@Id). It would be just fantastic if during patch building the WiX tools could look into the instance transforms collection of the baseline package and take the list of product codes out of there. That would omit the necessity to always specify the following section in the patch:

<TargetProductCodes Replace="no">
    <TargetProductCode Id="{GUIDGOES-HERE-4412-9BC2-17DAFFB00D20}" />
    <TargetProductCode Id="{GUIDGOES-HERE-4731-8DAA-9E843A03D482}" />
    <TargetProductCode Id="{GUIDGOES-HERE-4f1a-9E88-874745E9224C}" />
</TargetProductCodes>

As usual, WiX Toolset developers have done and keep doing fantastic job making our lives as setup developers easier!

Feel free to leave a comment in case you have a note or a question. Feedback is welcome, as usual!

Moving to dotNetInstaller: the odd Basic UI

In the previous post, I’ve outlined how to emulate the launch conditions behavior in dotNetInstaller. In that article I have also emphasized the importance of turning the UI into the Basic mode. It is necessary in order to avoid extra dialogs which require user interaction. If you followed the scenario I described, you might notice a strange behavior of the BasicUI mode: the message boxes disappear without any user participation. I thought it’s be a kind of a bug, but it was done on purpose. Take a look at this code (taken from dotNetInstaller sources):

int DniMessageBox::Show(const std::wstring& p_lpszText, UINT p_nType /*=MB_OK*/, UINT p_nDefaultResult /*=MB_OK*/, UINT p_nIDHelp /*=0*/)
{
   int result = p_nDefaultResult;
   switch(InstallUILevelSetting::Instance->GetUILevel())
   {
   // basic UI, dialogs appear and disappea
   case InstallUILevelBasic:
       {
           g_hHook = SetWindowsHookEx(WH_CBT, CBTProc, NULL, GetCurrentThreadId());
           CHECK_WIN32_BOOL(NULL != g_hHook, L"Error setting CBT hook");
           result = AfxMessageBox(p_lpszText.c_str(), p_nType, p_nIDHelp);
           CHECK_BOOL(0 != result, L"Not enough memory to display the message box.");
           if (result == 0xFFFFFF) result = p_nDefaultResult;
       }
       break;

   // silent, no UI
   case InstallUILevelSilent:
       result = p_nDefaultResult;
       break;

   // full UI
   case InstallUILevelFull:
   default:
       result = AfxMessageBox(p_lpszText.c_str(), p_nType, p_nIDHelp);
       break;
   }

   return result;
}

So, as you can see, in Basic mode is shows the message box, and after some time (if you didn’t catch the moment to press any button), it automatically emulates the pressing of default choice button. I was quite surprised when I understood it was designed to work like this – that’s because I’ve never seen such a UI behavior…

But, anyway, I suspect that a user would like to know why the installation terminated - a certain prerequisite is not installed. As long as the mentioned behavior is hard-coded, the only option is to create a custom build of dotNetInstaller. It’s obvious that the fix is trivial here – make the case for InstallUILevelBasic go the same branch as InstallUILevelFull, that is, just show the message box. Next step is to build the solution – see “Contributing to Source Code” chapter of dotNetInstaller.chm for instructions how to build.

Finally, install the custom build instead of the official one and make sure your setup project picks the changes up. That’s it!

As usual, I would appreciate any comments and notes!

Moving to dotNetInstaller: launch conditions

In the previous post I’ve described how to implement the simplest use case of a bootstrapper: create a single EXE file and run the actual installation after extraction. Today I’d like to go further and illustrate more production-like situation.

Ok, imagine that you’d like to add some checks to your installation package, and run the actual installation only if all those checks pass. This scenario has its own term: adding launch conditions. Launch condition is basically a statement which evaluates to either true, or false. In case it’s false, and the check is critical for the further installation, you terminate the installation process, as a rule. Otherwise, you let it do the job.

The dotNetInstaller has a conception called Installed Checks. It can check various areas, like system registry, files or directories. It is only allowed to place installed checks under components. In the simplest scenario we avoided using components, relying just on the install complete command. Components refer to separate independent parts of your installation package. There are various types of components – dotNetInstaller help file explains them all pretty good. So, my first guess was to add a single component of type “exe”, move my embedded files there and add a number of installed checks to it for various prerequisites I require. Something like this:

But my assumption was not correct. The trick is that installed check (or a combination of those) placed under a component defines if this very component is installed. In other words, the most “supported” use case of dotNetInstaller is when you add all the components you need into your final package, and each of them verifies its own presence on the target machine. As a result of such verification, a component decides whether to install or not.

A quick search on codeplex.com discussions gave me a link to the appropriate feature request, which proved my assumption it’s not supported out of the box today. However, there is a workaround.

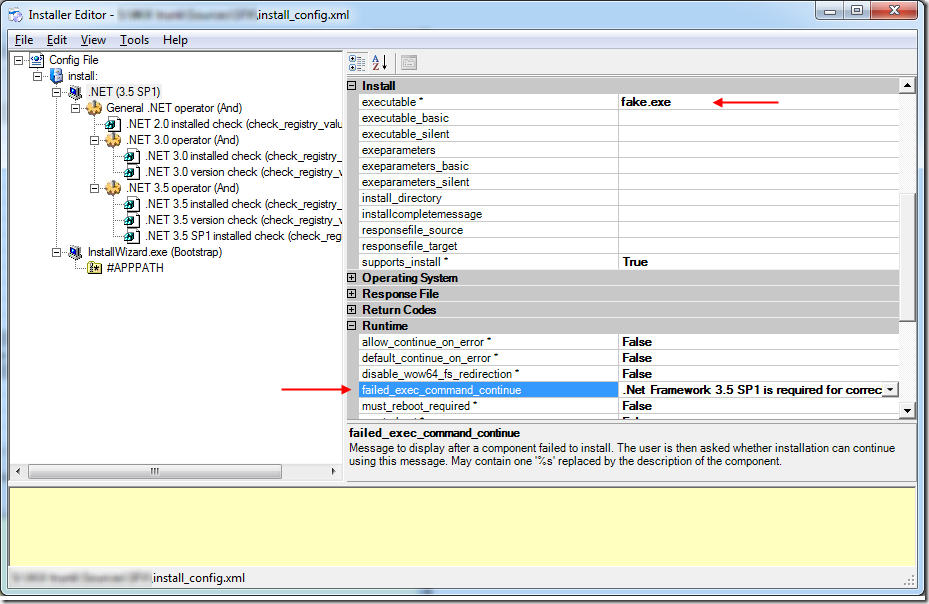

For each of the launch conditions a separate component should be declared. The trick is such components won’t actually install anything, so we’ll call them “fake” components. A component has a property called “failed_exec_command_continue”. It contains a message to be shown to the user in case a component failed to install, so put the appropriate message there, for instance, “.NET 3.5 SP1 is not installed. The installation program will terminate”. Make sure that both “allow_continue_on_error” and “default_continue_on_error” are set to False – otherwise a user will be presented with a prompt box, instead of a simple message box. Finally, put non-existing executable to the “executable” property, e.g. “fake.exe”. Now it’s time to add a required number and combination of installed checks to this fake component, which will actually do the job. Here’s what we get at the end of this shaman dancing:

So, how does this work? The dotNetInstaller starts the installation from the .NET (3.5 SP1) component and the first thing it evaluates the installed checks. If the evaluation succeeds, in our sample this means that the .NET 3.5 SP1 is present on the target machine. In terms of dotNetInstaller, this means that a component we called “.NET (3.5 SP1)” is installed and we do not trigger its installation. Otherwise, if the evaluation fails, this means that the component is not present and dotNetInstaller starts its installation. It will try to call “fake.exe”, which does not exist, and will show a message. As long as we forbad the rest of the installation to continue, it will terminate. Exactly what we need!

Note however, that the described behavior looks that good in Basic UI mode. The error of failed component is just logged to the log file, and no more annoying dialogs are displayed.

If you try this out, you’ll notice one strange little thing with message boxes. In the next blog post I’ll tell you what it is, and how to handle it. And this will be the end of the trilogy. :-)

Moving to dotNetInstaller: the simplest case

I’ve been playing with one of the most popular bootstrapper applications available as free and open source tool – dotNetInstaller. On one hand, it turns out to be quite a powerful and feature-rich tool. But on the other, some things seem not intuitive to me, and there are still limitations. This post opens the series of (at least, two) posts about dotNetInstaller and my own experience with it.

Ok, imagine you need to do a very simple thing: wrap your installation program resources into a single EXE file, let it extract necessary files to somewhere under %TEMP%, run the installation UI wizard and finally drop extracted files when the installation is done.

You should start by installing dotNetInstaller (I used the most recent 2.0 version). One of the executables being installed is InstallerEditor.exe. It is a kind of IDE (smart editor) for dotNetInstaller project files, which are called configurations. The information about your project is stored as XML, that is easily DIFF-able and MERGE-able.

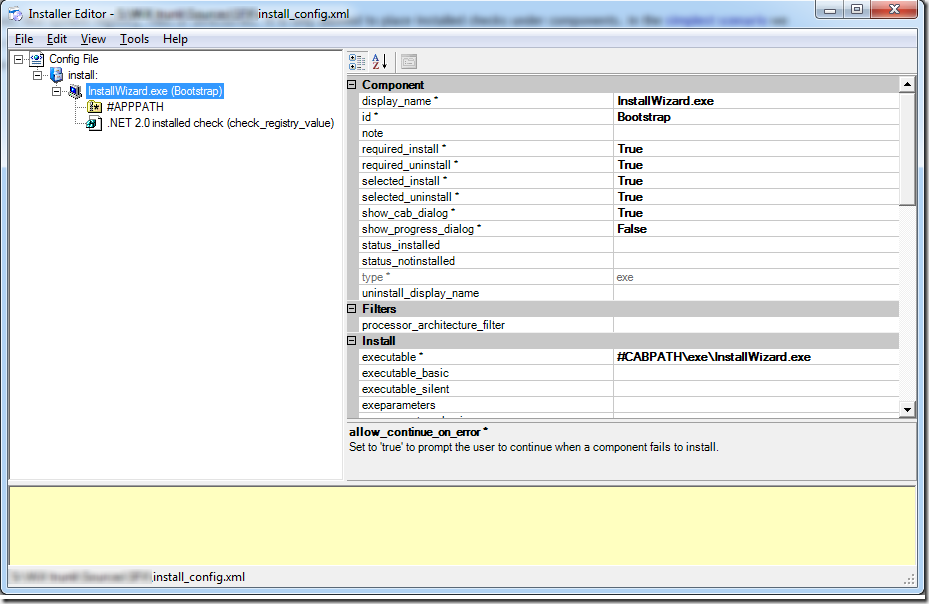

So, run InstallerEditor, and select File > New – the new empty config file will be created. The first thing I suggest to do is to enable logging – it is a property of config file you’ve just created. Next, right click the root (and so far the only) node in the left pane, and select Add > Configurations > Setup Configuration. Actually, this is the only type of entities you can add under config file node. Besides, at this level you can set the UI level for your bootstrapper. According to our task definition, ‘basic’ is just enough. By now, you should end up with something like this:

Setup configuration serves as a root for various entities: embedded files, installation components, UI controls, etc. However, our requirements for the simplest scenario doesn’t require most of it. Usually configuration consists of a number of components, but again, we won’t add them for now.

In order to include installation files into our bootstrapper, right-click “install:” node and select Add > Embed > Embed Folder. Now fill the properties for this embedded folder. Fortunately, those are just two – sourcefolderpath and targetfolderpath. Place the value ‘#APPPATH’ to the first one and any value to the second. ‘#APPPATH’ is one of the several variable substitutions offered by dotNetInstaller out-of-the-box and basically means that installation files will be picked either from the current folder, or from the one you specify in the /a switch of the linker. The ‘targetfolderpath’ can logically be left empty, because it sets the name of the subfolder under system temp location to extracts the files to. But it is designed to be required, so feel free to paste anything here, for instance, ‘exe’. Ok, so now we are at this point:

The installation wizard to run is also among those files we embedded, of course. So, in order to run it after the extraction is done we should fill in the ‘complete_command’ property of the configuration. For this, select “install:” node and find the set of properties prefixed with “complete_command”. As you can see, the configuration entity has lots of properties to configure and is quite flexible. The “complete_command” should store the command line to run on successful installation complete. You can specify different values for each of 3 UI modes: full, basic and silent. Actually, if basic or silent are not specified, it will fall back to just “complete_command”.

Besides, we’d like to show CAB extraction dialog. This is especially useful when the files are large and it takes some time to extract. Set “show_cab_dialog” to ‘true’. Optionally, customize other properties of the CAB extraction dialog, like Caption and Message. So, summarizing these two paragraphs, we now have the following configuration:

Pay attention to “cab_path” property. In this form it basically means: take system %TEMP% location, and create a subfolder in it named as random GUID. This guaranties the uniqueness of the extract target location and you would not probably ever want to change it. Now, this magic location can be referenced as #CABPATH by other properties. For isntance, this is what we have done for “complete_command”. The values says: go to the folder the files were just extracted to, go down to its “exe” subfolder (remember ‘targetfolderpath’?) and run InstallWizard.exe.

And finally, some more details. Make sure “auto_start”, “wait_for_complete_command” and “cab_path_autodelete” are all set to ‘true’. Obviously, this will instruct our bootstrapper to start automatically, and auto delete the extracted files after the complete command completes.

Linking and running

Before building the project, you can run it with dotNetInstaller.exe to see the UI. Just run dotNetInstaller.exe /ConfigFile configuration.xml. But this won’t embed any files. As a result, you’ll be able to check only UI (which is obviously not the point for our case). All settings which rely on embedded files will fail.

Instead, we’ll link the sources into final setup.exe. The following command does the job:

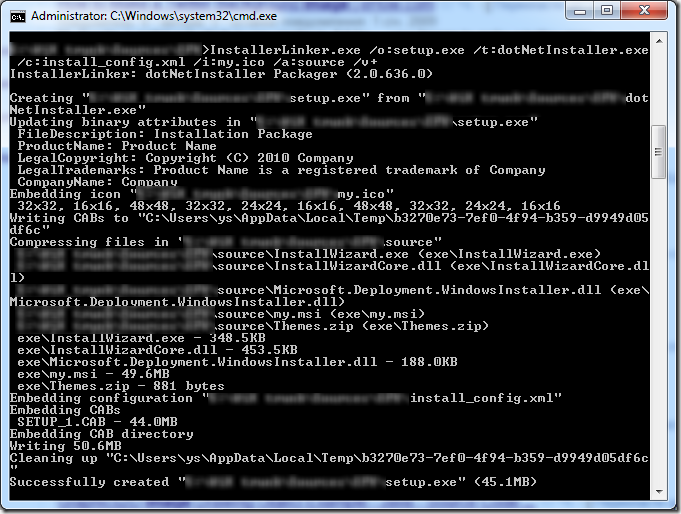

        InstallerLinker.exe /o:setup.exe /t:dotNetInstaller.exe /c:install_config.xml /i:my.ico /a:source /v+

Here, /o: stands for output file name, /t: is a template of EXE file to make like – be sure to always set it to dotNetInstaller.exe, /c: is a path to the configuration file we have been editing all this time, /i: is obviously a path to the icon to use as an application icon for setup.exe, /a: is a path to the installation files to embed, and finally, /v+ turns the verbose logging on. In case there are no errors, you’ll see the following output:

Now you have setup.exe, which extracts your installation files (showing the progress), and starts your main InstallWizard.exe in case of successful extraction.

That’s it! As usual, your comments and notes are welcome.
